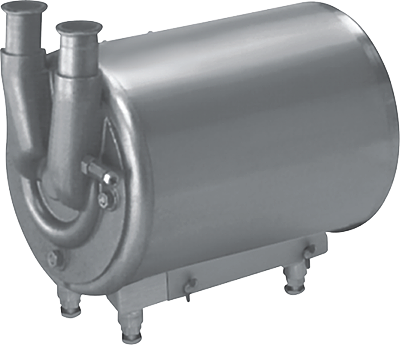

CIP self-priming pump,the body of pump is made of acid-proof stainless steel (AISI 316),which has feature of acid-resistant and alkaliresistant, and conform with the sanitary require-ments for foodstuff.
With feature excels centrifugal pump,CIP self-priming pump can extract liquid with air or foam, and can automatically pump even through there is only air inside the pump.This pump is a positive displacement pump,which can be widely used in situation when liquid level is lower than the pump,e.g.sucking milk from the bucket in the milk-sucking room,also can used as backward pump for cleaning tank in CIP auto cleaning system, mechanic sealing apply built-in centripetal type.The temperature of material pumped should not exceed 100℃.
Note: The upper curve is the curve for flow rate and total lift (Q-H).
The lower curve is the curve for flow rate and degree of pumped
vacuum (Q-H), h takes the absolute value
The reading on the pressure meter at the outlet pipe is the difference
of absolute value of total lift and degree of pumped vacuum
