全自動CIP清洗時指設備（罐體、管道、泵、閥門等）及整個生產線在無需人工拆開的前提下，在閉合的回路中進行循環(huán)清洗。
This system adopt the PLC program to control, with the colored touch --screen to operate and display the whole process flow and also the controlling parameter. The temperature of the cleaning liquid can be set. It can set the PH value, the cleaning time, cleaning sequence, and also the refluence PH value. With the system malfunction alarm device.
1. CIP cleaning liquid storage tanks(include acid tank, alkali tank, hot water tank, clear water tank);
2. Two single-layer storage tanks for concentrated acid and alkali.
3. CIP forward and return pumps;
4. Two diaphragm pumps for acid/alkali concentrate;
5. Heat exchanger(plate or tubular type);
6. One electrical appliance box;
7. One set of controlling pipe and valve component;
8. One set of auto-performance components and parts and the electrical appliance material;

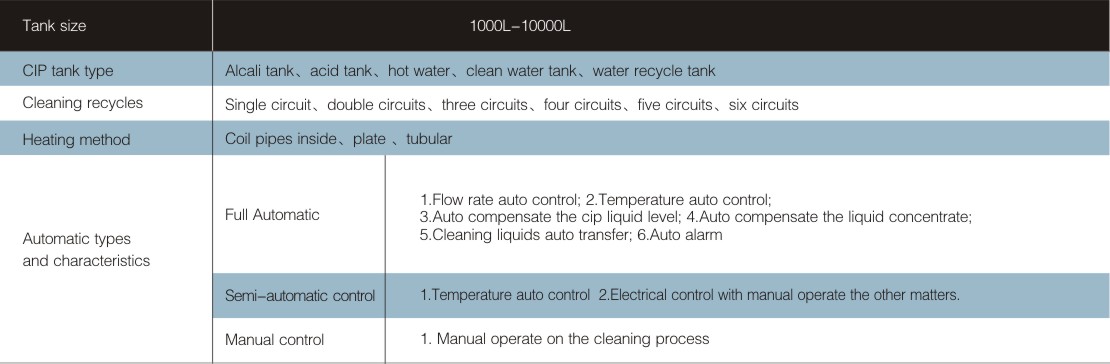

9. CIP cleaning liquid storage tank: 1000L-10000L;
10. According to the customer's requirements, we can make the double-circuit, three-circuit, four-circuit and so on, meanwhile we can make multi-circuit operating at the same time.
11. The Heating way: plate type, coil tube type, tubular type.
1. Auto-flow control for the cleaning solution
2. Automatically regulate the temperature of the cleaning liquid.
3. Auto-compensate for the inside tank liquid level.
4. Automatically-compensation for the acid and alkali concentration.
5. Auto transfer from one cleaning liquid to another.
6. System auto alarm-device
The heating way for the cleaning liquid is auto-heating. The operating principle: set the cleaning temperature through the temperature controller to control the steam control valve's opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced. The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.
Note: We can equip and process the equipment according to the customers' requirements.
