Applicable for large milk collection centre, or for milk outdoor storage at large milk production plant; also used at other food and pharmacy factory for storage of liquid product. This equipment is equipped with cleaning system, agitator, sight and view devices, also have attachments of thermometer and level indication meter.
Material: all material used is high quality SUS304-2B or 316L stainless steel.
Structure: cylindrical shape, conical top cover of 15 degree, with skirt base; with PU(Polyurethane) as heat insulation; with cooling dimple pad at tank wall and base.

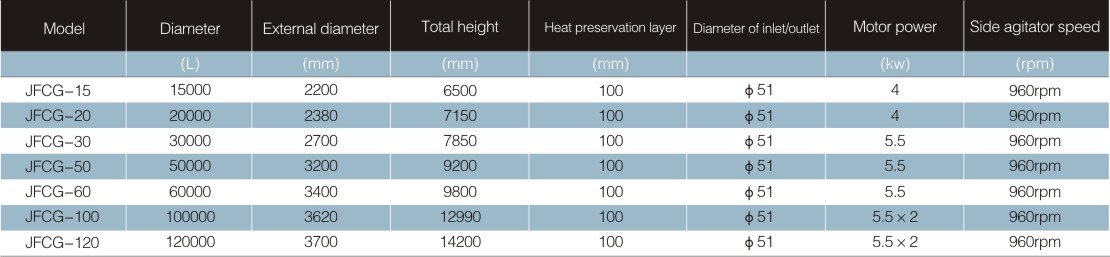

Volume range: 15,000L-120,000L
Standard attachments:
a) One air tight side manway;
b) One side mounted agitator;
c) One PT100 thermometer, temperature range 0~100℃;
d) Two cip cleaning ball;
e) One aseptic sample valve;
f) Anti butterfly and dirt air vent;
g) Product inlet/outlet;
h) Cooling medium inlet/outlet;
i) Level sensor;
j) Ladder with circle protection and protection fence
at tank top.
It can be made according to customers' special requirements. To large outdoor storage tanks above 120T,
We will recommend manufacturing on the field when considering transportation.
