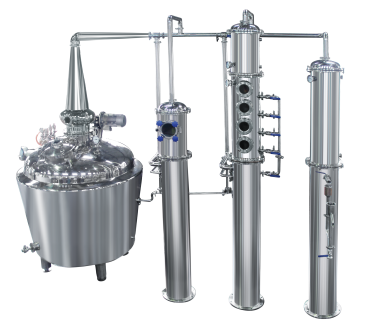

Structure: Boiler+gin basket+low reflux column(distillation column)+condenser column
Boiler with gooseneck cap is head of the product line "Whiskey",with stirrer, explosion-proof motor and a three-way valve that switches for steam into distillation column. The boiler designs in apple-shaped, top seal and arch bottom, it can speed up heat time and easy to drain.
Gin basket made of SUS304, you can put the spice in it. The structure of gin basket have two options:1. filter plate directly welded in the bottom of the barrel; 2.Internal filter cylinder, can be directly into the top manhole
Distillation column made of T2 red copper, the top of column is fractional condenser, it will cool the steam and make the steam become a fluid level on distillation plates -improving alcohol content. Distillation column includes bubble caps, bubble plates, sight glasses and temperature gauge.
Condenser cooler made of SUS304,adopt tube type heat exchanger, cooling water inlet with three options: screw-thread,quick-install and flange. Below is parrot, with beautiful and clean appearance. The alcohol meter can be offered according to your Requirements.
The equipment can be heated by steam or electricity. Suitable for producing low alcohol spirit, such as Whiskey, Rum, Brandy and so on.
Jufeng Distillery Systems are carefully designed for your specific requirements and to accommodate your long-term vision of success.
