- The concentrator is suitable for concentration of liquid materials in such industries as TCM, Western medicine, glucose, starch, monosodium glutamate, dairy and chemical industry.

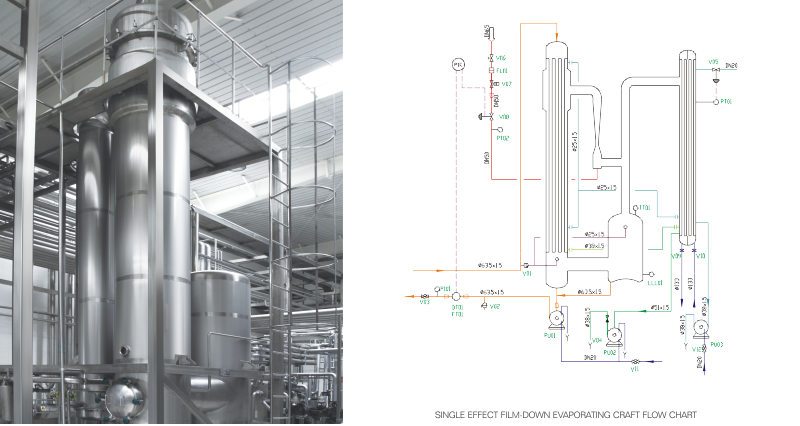

- The falling film room adopts stainless steel integral framework structure with low integral height. It is very suitable for installation in liquid milk workshop.
- The hot pressure pump draws secondary steam, which is energy saving.
- The device is installed with cleaning spray head and CIP internal system as well as fully sealed balancing tank and acid & alkali tanks, which can reduce pollution and volatilization of acid & alkali.
- The auto-control box equipped with analogue diagram of technological flow can clearly display the operation status of the device with convenient operation.
The device is mainly used for material concentration during production of liquid milk. The period of being heated of materials is short and the evapo-ration temperature is low. It maintains the flavor of fresh milk. It is applicable to the concentration of food, chemical industry, dairy, beverage, Western medicine and starch sugar etc. and recovery of industrial organic solvent (such as alcohol). It can be used in the low temperature vacuum concentration of heat sensitive substances with smaller concentra-tion ratio.
Alcohol recovery: Large recovery capacity. Vacuum concentration process is adopted. It enhances more than 5-10 times production capacity of the same kind of device. The energy consumption is 30% reduced. It has the characteristics such as small investment and high recovery benefit.
Liquid concentration: The device adopts external heating natural cycling mode and vacuum negative pressure evaporating mode, with instant evaporation and great concentration ratio to 1.3. The liquid materials are concentrated without foam under the completely sealed status. The liquid medicine concentrated from the device has no pollution, and has strong flavor of medicine. The cleaning is convenient. (Just open the upper and lower covers of The heater for the cleaning) The operation is convenient and the space is small. The heater and evaporator adopt stainless steel heat preservation structure. The heat preservation layer adopts stainless steel sheet as the shell. The surface is carried out mirror polishing or matte treatment.
